Usage of Sdr2


Sdr2's purpose is to create voxel data sets from DICOM-series. It assumes that one or more series are located in one folder. Sdr2 requires selection of folders.


DICOM is a complex standard. Sdr2 is not supporting all flavors of DICOM images. It is not aware of multi frame series. And it won't support all types of JPEG compressed images, color images, and complex data types. If Sdr2 realizes that it can't read files, it will pop up:

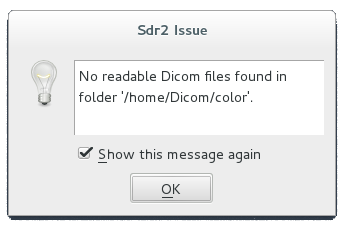

file not readable

What Sdr2 can or can't read depends on your implementation of DCMTK.
If Sdr2 is uncertain whether it can read a DICOM serie, it will show:

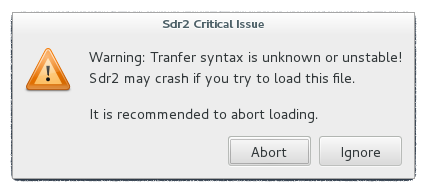

unknown DICOM format

And unfortunately it will crash in some cases.

Main Dialog

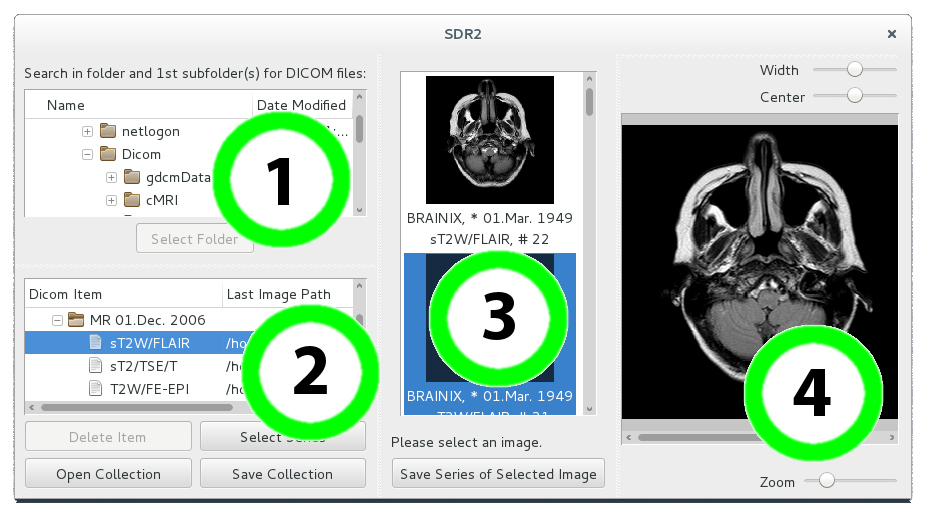

Sdr2's main dialog is composed of four splitters.

missing image of sdr2_full_screenshot

Splitter 1 connects Sdr2 with the file system on your computer.
Splitter 2 allows for selection of DICOM series which Sdr2 has detected in folders.
Splitter 3 provides thumbnails of images with identical series number.
Splitter 4 is a simple preview of a selected DICOM image.

1. Selection of Folders

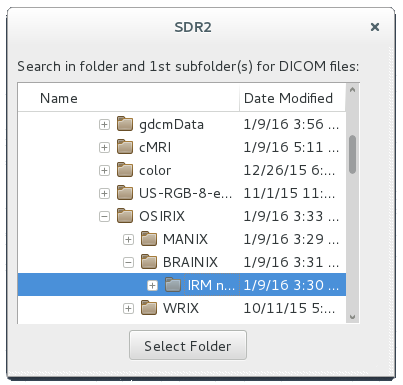

select folder

Please use the expand and collaps buttons to expand or collaps a folder.

When the folder button is clicked, Sdr2 will search for DICOM files in that folder and the first sub-folders.
If DICOM files are found in those folders, the select button will be activated.
Press this button to sneak into the DICOM headers and transfer readable series into the series dialog.

2. Selection of Series

The series dialog displays information on DICOM studies and series.

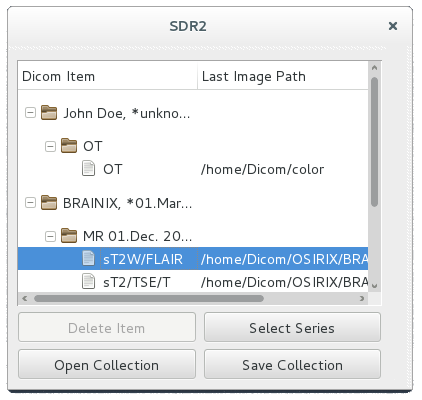

select series
Double click the document icon or press the 'Select Series' button to load and preview a DICOM serie.
You might want to save the current collection of DICOM series. Pressing the 'Save Collection' button will save the description and localisation of series in the folder tree. If you delete or move DICOM files or folders on your harddisk this information will not be valid anymore.
Sdr2 will save and read description and localisation of selected series automatically in 'DICOM.xMiniDcm'.

3. Converting and Saving

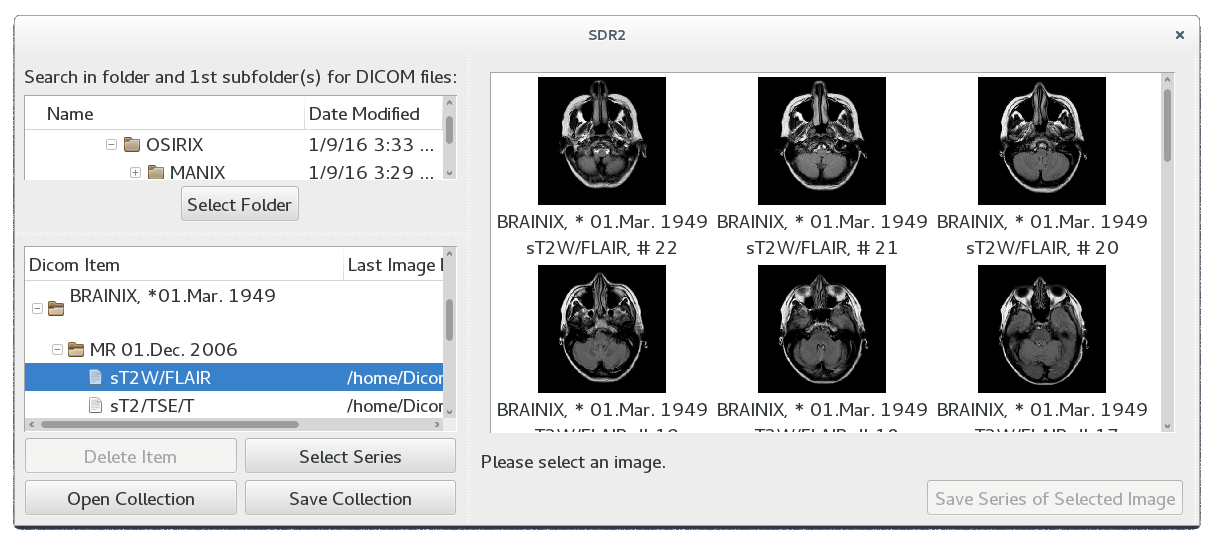

The series dialog assumes that DICOM images with identical series numbers in the DICOM-header belong together. In some cases however this is not case. That's why thumbnails are displayed. select series It is mandatory to select (left mouse click) one thumbnail as reference image before a serie can be converted and saved. DICOM Info

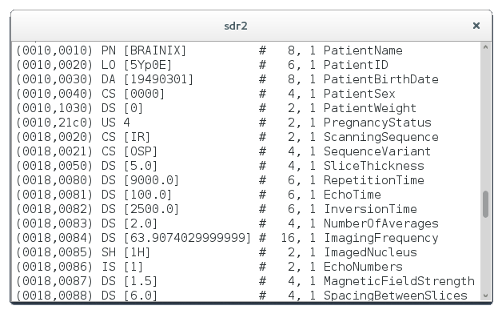

DICOM Info Double-click on a thumbnail will show some DICOM-header information and open that image in the preview window (4).

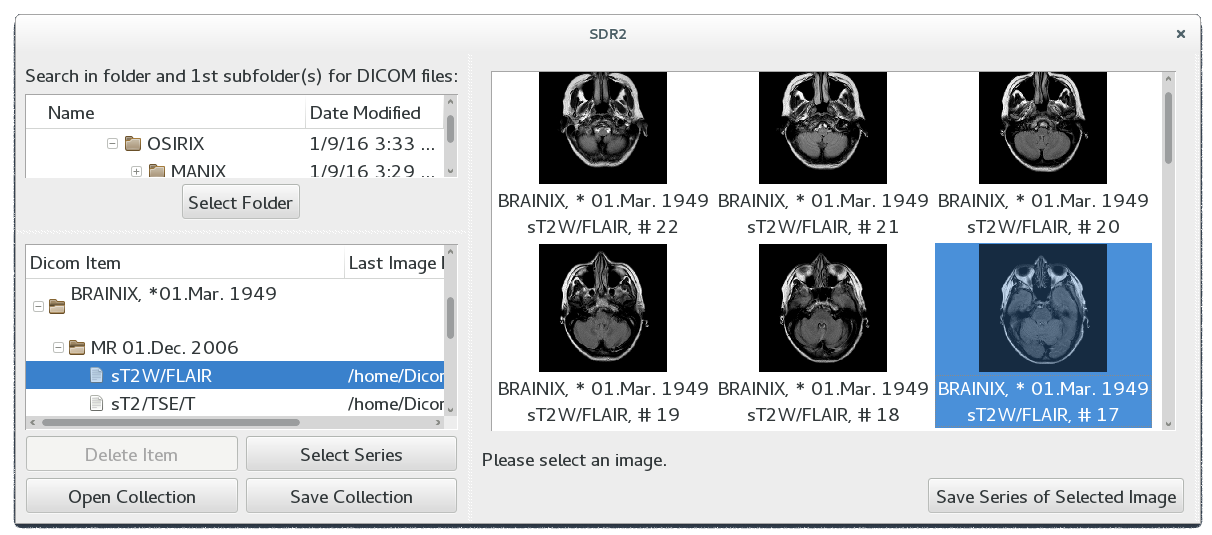

Once a thumbnail is selected, the 'Save Series of Selected Image' button will be enabled.

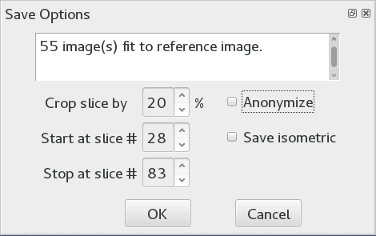

A left click on this button will open a save options dialog:

save options

Select your options, left click the okay button button and the usual save dialog of your OS will pop up. If Dicom series are converted to Nifti, spatial information is considered. But not so when converted to Analyze.

Sdr2 is in beta phase. Please report bugs to Johannes A. Koeppen
